Description & Applications

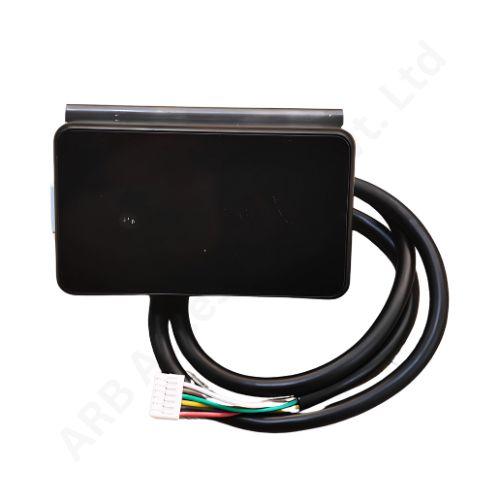

The JKBMS 2.3 Inch LCD Display is a compact monitoring and control accessory specifically designed for JK Smart BMS battery protection boards. It combines a real-time display screen with an integrated active switch, allowing users to both monitor and control their battery system from a single interface.
This display provides essential battery data such as total voltage, current, SOC (state of charge), and system status, making it highly useful for quick diagnostics without needing a mobile app.
Applications
- Lithium battery packs (Li-ion / LiFePO4 / LTO)
- Electric bikes & scooters
- Solar energy storage systems
- Inverter & UPS battery systems
- DIY battery projects
- OEM battery pack manufacturing
- Why Choose 2.3 Inch LCD Display?
- All-in-One Control + Monitoring
- Combines display and ON/OFF switch—no extra accessories required.
- Compact & Space Saving
- Perfect for tight battery enclosures and portable systems.
- Easy Installation
- Plug directly into JK BMS—no wiring complexity.
- Real-Time Battery Insights
- Instantly check voltage, SOC, and system status without opening apps.
- Reliable for Field Use
- Useful for EV, solar, and backup systems where quick access is critical.
Features
- 2.3-Inch LCD Display – Compact and clear interface
- Built-in Active Switch – Turn BMS ON/OFF directly from the screen
- Real-Time Monitoring – Displays voltage, current, SOC, warnings, and status
- Plug & Play Design – Connects directly to JK BMS display port
- Backlight Function – Auto ON/OFF to save power
- Wide Compatibility – Supports most JK Smart BMS models
- Low Power Consumption – Optimized for battery systems
- Working & Control Functions
- Short Press → Turn ON BMS or wake display
- Long Press (2 sec) → Turn OFF BMS
- Auto Backlight OFF → Saves power when idle
- Manual Backlight Control → Toggle display visibility
Warranty: To be updated
