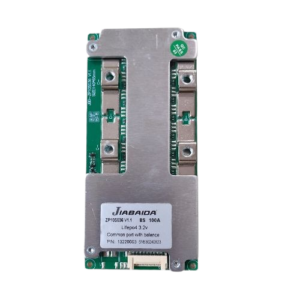

BMS LFP 8S 100A JBD (ZP10S036)

JBD BMS LFP 8S 100AMP Hardware (ZP10S036)

Product Data Sheet (ZP10S036)

The JBD BMS LFP 8S 100AMP Hardware (ZP04S036) is a sophisticated Battery Management System (BMS) designed to enhance the performance, safety, and longevity of lithium iron phosphate (LiFePO4) battery packs configured in a 8-series (8S) arrangement. This BMS is engineered to manage battery packs with a capacity of up to 100 amperes, making it an ideal choice for various applications, including electric vehicles, solar energy storage systems, and portable power solutions.

Key Features:

• Comprehensive Protection: Safeguards against overcharge, over-discharge, overcurrent, short-circuit, and temperature anomalies, ensuring battery longevity and user safety.
• Efficient Cell Balancing: Incorporates a balancing current of approximately 250mA to maintain uniform cell voltages, enhancing overall battery efficiency.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Series Configuration: 8 Series (8S)
• Interface Type: (Charge and discharge are both at the same port)
• Charging Voltage: 3.6V(3.6VxNumber of strings)
• Continuous Charging Current: 50A
• Continuous Discharging Current: 100A
• Cell voltage range: 2.20~3.75V
• Consumption: ≤150uA
• Circuit resistance: ≤10mR
• Operating Temperature Range: -20°C~75°C
• Size: 144x85x10mm

Applications:

• Electric Vehicles (EVs)
• Solar Energy Storage
• Portable Power Systems
• Marine Applications
• Uninterruptible Power Supplies (UPS)
