Description & Applications

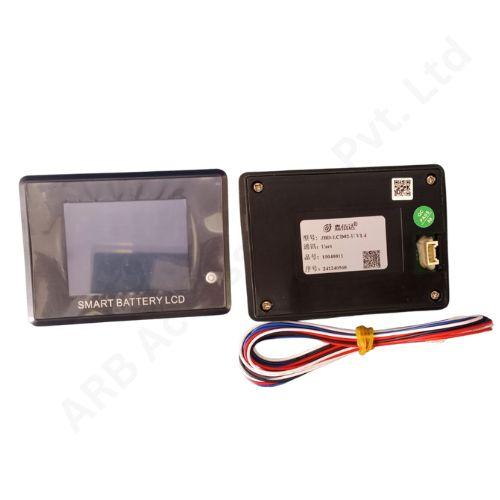

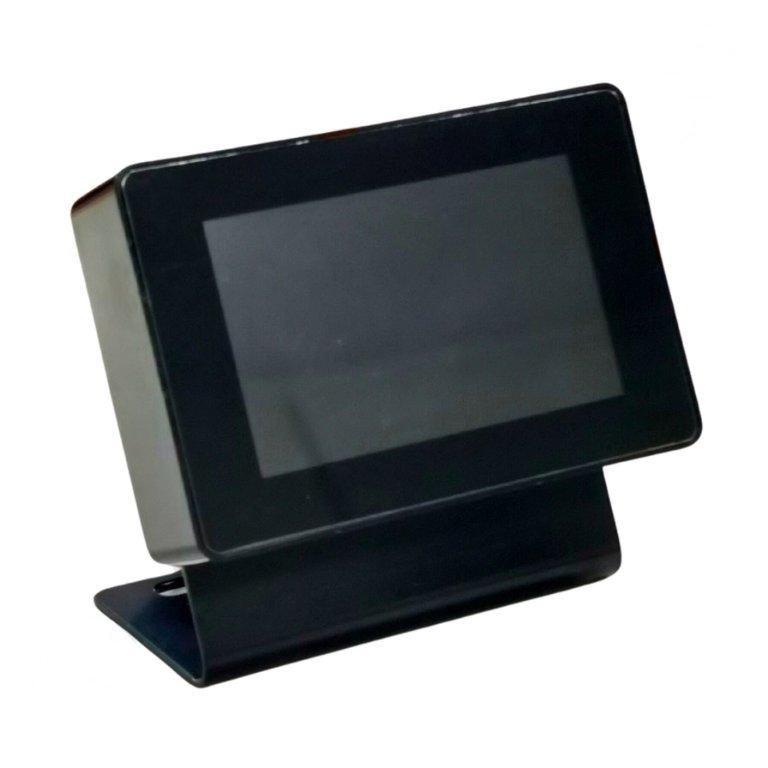

The JBD LCD05 4.3 Inch SOC Display is a smart color touchscreen battery monitoring display designed for use with JBD (Jiabaida) Smart Battery Management Systems (BMS). Featuring a 4.3-inch high-resolution TFT LCD touchscreen, it provides real-time battery information, including State of Charge (SOC), battery voltage, current, power, temperature, cell status, and alarm notifications, allowing users to monitor battery performance with ease.
Designed for LiFePO₄ and Li-ion battery packs, the LCD05 is ideal for electric vehicles (EVs), solar energy storage systems (ESS), UPS systems, telecom batteries, marine applications, and industrial lithium battery packs. It communicates with compatible JBD Smart BMS models through UART communication (model dependent).
Applications
- Lithium Battery Packs
- Provides real-time monitoring of LiFePO₄ and Li-ion battery packs.
- Electric Vehicles (EVs)
- Suitable for electric scooters, e-bikes, e-rickshaws, golf carts, and electric utility vehicles.
- Energy Storage Systems (ESS)
- Ideal for solar battery banks, residential ESS, commercial energy storage, and off-grid power systems.
- UPS & Backup Power Systems
- Monitors battery performance in UPS units, inverter batteries, and backup power systems.
- Marine & RV Applications
- Suitable for marine battery banks, camper vans, recreational vehicles (RVs), and mobile power systems.
- Industrial Battery Systems
- Used in telecom power systems, industrial battery cabinets, OEM battery packs, and custom lithium battery solutions.
- The JBD LCD05 4.3 Inch SOC Display is an intelligent touchscreen battery monitor that works seamlessly with JBD Smart BMS to display real-time battery information such as SOC, voltage, current, power, temperature, cell status, and system alarms. It provides a convenient and user-friendly solution for monitoring lithium battery systems in EVs, energy storage systems, UPS installations, marine applications, and industrial environments.
Features
- Model: JBD LCD05
- 4.3-inch full-color TFT touchscreen display
- Compatible with JBD Smart BMS
- Real-time State of Charge (SOC) monitoring
- Displays:
- Battery voltage
- Charge/discharge current
- Battery power
- Cell voltage information
- Temperature
- MOSFET status
- System alarms and fault notifications
- UART communication interface (compatible version dependent)
- User-friendly graphical interface with touch operation
- High-resolution display for clear visibility
- Compact panel-mount design for easy installation
- Low power consumption with reliable continuous operation
- Suitable for LiFePO₄ (LFP) and Li-ion (NMC) battery systems
