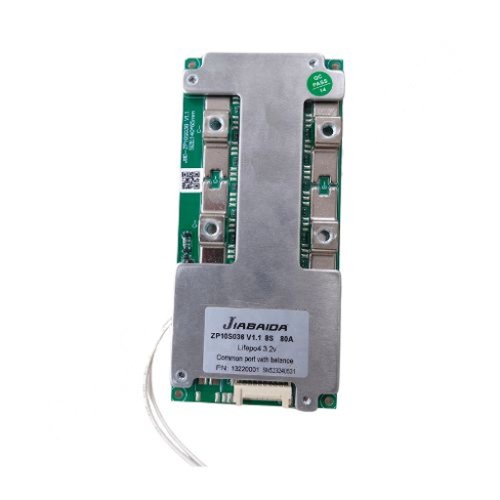

JBD BMS LFP 8S 80 A (ZP04S014)

Description & Applications

The JBD ZP10S036 8S 80A BMS is designed for LiFePO4 (LFP) 24V battery packs, offering superior performance and long-term protection. Whether you're building energy storage systems, solar battery backups, or electric vehicle packs, this BMS ensures safe and balanced operation across all 8 cells.

High Current Output
With an 80A discharge current capacity, it is perfect for medium to high power applications, delivering efficiency and reliability where large energy draws are necessary. Suitable for motors, inverters, and heavy-load devices.

Applications

• E-Rickshaw and E-Bike Batteries
• Solar Inverter Backup Systems
• Industrial Power Packs
• DIY Energy Storage Solutions
• UPS for Data Centers
• High Current Motor Applications

Features

• Nominal Voltage - 25.6V (8 x 3.2V)
• Charge Cut-Off - ~29.2V
• Discharge Cut-Off - ~20.0V
• Max Charge Current- 30A
• Max Discharge Current- 80A continuous
• Cell Balancing Passive- (~50mA per cell)
• Short Circuit Protection- Yes (auto recovery)
• Over Temperature Cutoff- Yes
• PCB Dimensions Approx.- 125mm x 65mm
• Communication Port- Optional (UART/RS485/BT in advanced versions)
• Mounting Style -Hole-mount ready
