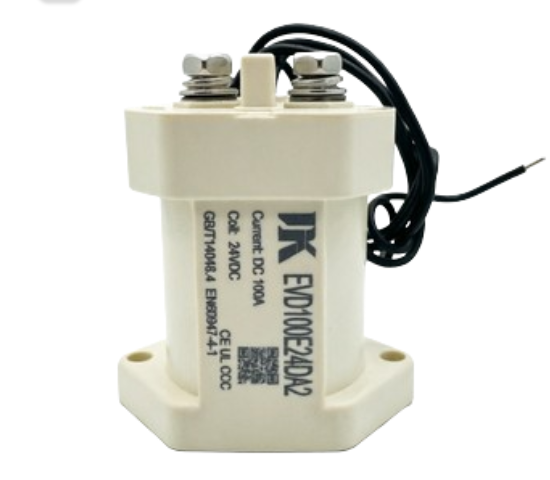

DC contactor 100A Main circuit voltage:24Vdc

Name: DC contactor 100A Main circuit voltage:24Vdc
Brand: SICON GREEN
SKU: DC-CON-24A-100A/EVD100E24DA
Price: 4576 INR
Availability: InStock

Product Code / Model: DC-CON-24A-100A/EVD100E24DA

DC contactor Rated current:100A-1000VDC Main circuit voltage:24VDC

₹4,576

Minimum Order Quantity: 10

Technical Specifications

Product Name	DC contactor 100A Main circuit voltage:24Vdc
Product Code / Model	DC-CON-24A-100A/EVD100E24DA
Category	DC CONRACTOR
Specification	DC contactor Rated current:100A-1000VDC Main circuit voltage:24VDC
Price	₹4,576

Specification note: This page uses the product information currently present in your supplied project. Extra datasheet fields can be added later without changing the design.

Product Information

Category: DC CONRACTOR
Model / Code: DC-CON-24A-100A/EVD100E24DA
Listed specification: DC contactor Rated current:100A-1000VDC Main circuit voltage:24VDC
Price in ₹
Add to Quote supported
Wishlist supported

Description & Applications

Electricity Type: DC
Main Circuit Rating Voltage: 24V-1000V
Main Circuit Rating Current: 100 A
Phase: 2
Number of Pole: 2
Model Number: EVD100E24DA
Brand Name: DK
Product Name
DC Contactor
Certificate: CCC CE CB ISO9001
OEM: EVD100E24DA

Applications

1. Industry machinery power/motor control, Circuit insulation, Circuit protection and safety.
2. Vehicle battery distribution andback-up.
3. Inverter power
4. Power charging systems
5. Solar powerplant.
6. Other DC high-voltage power
