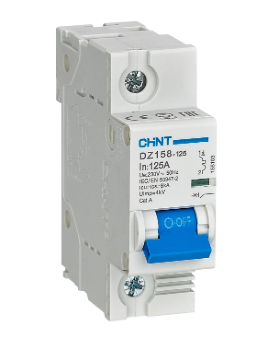

CHINT MCB DZ158 125H 125A 1P

Description & Applications

DZ158 Moulded Case Circuit Breaker
The DZ158LE Residual Current Operated Circuit Breaker offers comprehensive personnel and fire protection by guarding against electric shock, overload currents, and short-circuits. Compliant with IEC/EN 60947-2 standards, this device provides superior leakage protection with various sensitivity options. Its robust design and versatile functionality also make it an ideal choice for OEM integration, ensuring high levels of electrical safety and system integrity across residential, commercial, and industrial power distribution applications.

Features

• Compliant Standards and Certifications
• IEC/EN 60947-2
• Main Specifications
• Rated Current (In):125A
• Poles: 1P
• Rated Voltage (Ue): 230/400V to 240/415V AC, 277V AC, 480V AC, 60/110V DC, 110/220V DC
• Insulation Voltage (Ui): 500V
• Rated Frequency: 50/60Hz
• Rated Breaking Capacity: 6/10kA
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Dielectric Test Voltage at Ind. Freq. for 1 min: 1.89kV
• Pollution Degree: 3
• Thermo-magnetic Release Characteristic: 8-12 In (IEC/EN), 11.3-16.9 In (UL)
